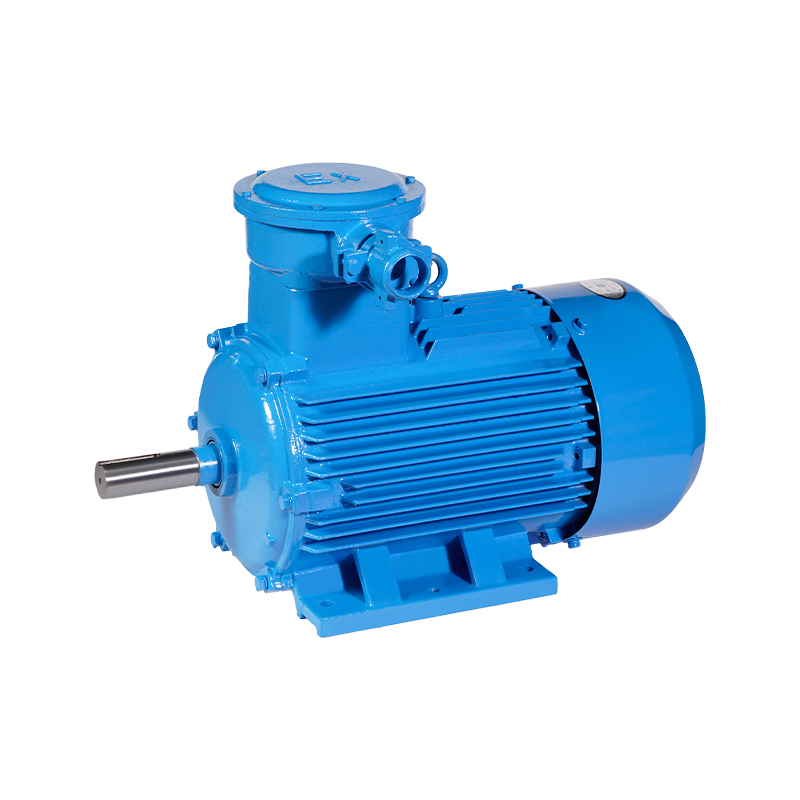

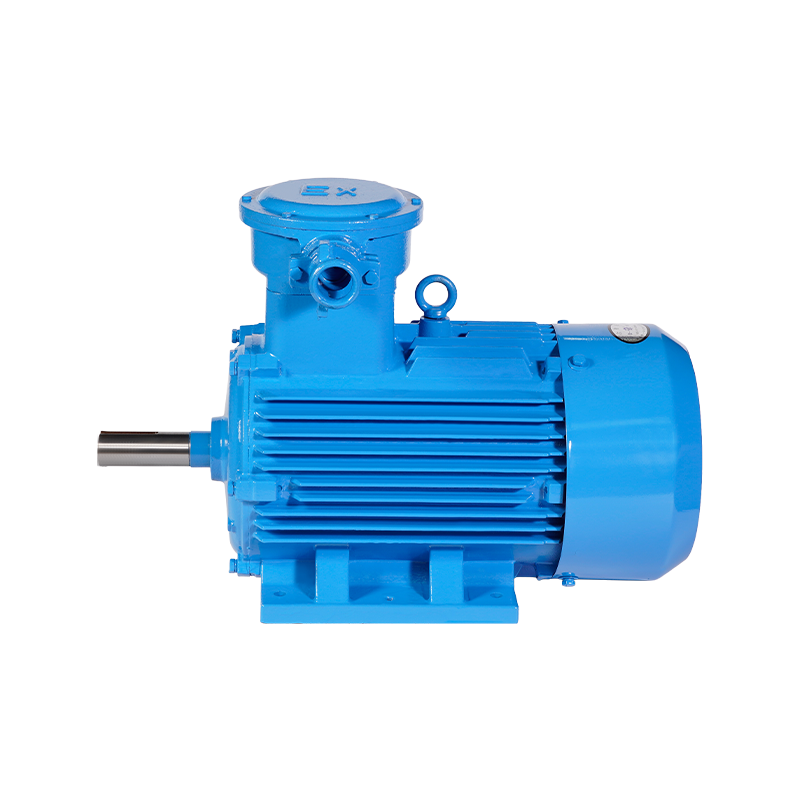

三相防爆永磁同步電動機

產品概述

三相隔爆型永磁同步電動機是我司在永磁同步電動機的基礎上新開發設計的隔爆永磁同步電機，不僅高效節能，而且結構簡單、運行可靠，可完全替代YB2 、YB3等隔爆型異步電動機，防爆標志為Exd II BT4Gb, 可適用于石油、化工、糧油、造紙、醫 藥、紡織等易燃易爆的場合。

該產品獲得國家防爆電氣產品質量監督檢驗中心頒發的防爆合格證和國家質量技術監督局頒發的生產許可證。

信息反饋

產品詳情

性能特點

1、效率高，額定效率達到國家1級能效標準；

2、功率因數高，無需無功補償；

3、同步性好，無轉差，不掉速，轉速恒定；

4、噪聲低，振動小，運行更加穩定可靠；

5、溫升低，比異步隔爆電機溫升可降低10-20K左右；

6、節能省電，綜合節電率可達8-20%,視負載情況而定；

7、控制性能優良，動態響應快，轉速控制精準。

使用條件

環境溫度： -15℃~40℃

海拔：不超過1000米

額定電壓：380V、660V、 ?其它電壓可選

額定頻率：50Hz、60Hz、 ?其它頻率可選

工作制：連續工作制 (S1)

防護等級：IP55

絕緣等級： F

冷卻方式： IC411/IC416

接法： Y

規格參數

電機型號	額定功率kW	額定電流	額定轉矩	效率(%)	功率因數	額定轉速	額定頻率Hz
TBYC-801-2	0.75	1.3	2.4	84.9	0.95	3000	100
TBYC-802-2	1.1	1.9	3.5	86.7	0.95	3000	100
TBYC-90S-2	1.5	2.4	4.7	87.5	0.95	3000	100
TBYC-90L-2	2.2	3.8	7	89.1	0.95	3000	100
TBYC-100L-2	3	5.1	9.5	89.7	0.95	3000	100
TBYC-112M-2	4	6.6	12.7	90.3	0.95	3000	100
TBYC-132S1-2	5.5	9.2	17.5	91.5	0.95	3000	100
TBYC-132S2-2	7.5	10.9	23.8	92.1	0.95	3000	100
TBYC-160M1-2	11	19.5	35	93	0.95	3000	150
TBYC-160M2-2	15	26.7	47.7	93.4	0.95	3000	150
TBYC-160L-2	18.5	32	58.9	93.8	0.95	3000	200
TBYC-180M-2	22	37.4	70	94.4	0.95	3000	200
TBYC-200L1-2	30	51	95.5	94.5	0.95	3000	200
TBYC-200L2-2	37	61.3	117.8	94.8	0.95	3000	200
TBYC-225M-2	45	75	143.3	95.1	0.95	3000	200
TBYC-250M-2	55	95	175	95.4	0.95	3000	100
TBYC-280S-2	75	125	238.7	95.6	0.95	3000	100
TBYC-280M-2	90	151	286.5	95.8	0.95	3000	100
TBYC-315S-2	110	179	350	96	0.95	3000	200
TBYC-315M-2	132	206	420	96	0.95	3000	200
TBYC-315L1-2	160	262	509	96.2	0.95	3000	200
TBYC-315L2-2	200	330	636.7	96.3	0.95	3000	150
TBYC-801-4	0.55	0.96	3.5	84.5	0.95	1500	50
TBYC-802-4	0.75	1.3	4.7	85.6	0.95	1500	50
TBYC-90S-4	1.1	1.9	7	87.4	0.95	1500	50
TBYC-90L-4	1.5	2.6	9.5	88.1	0.95	1500	50
TBYC-100L1-4	2.2	3.7	14	89.7	0.95	1500	50
TBYC-100L2-4	3	5.1	19.1	90.3	0.95	1500	50
TBYC-112M-4	4	6.6	25.4	90.9	0.95	1500	50
TBYC-132S-4	5.5	9	35	92.1	0.95	1500	50
TBYC-132M-4	7.5	12.2	47.7	92.6	0.95	1500	50
TBYC-160M-4	11	18.6	70	93.6	0.95	1500	50
TBYC-160L-4	15	23.9	95.5	94	0.95	1500	50
TBYC-180M-4	18.5	32	117.7	94.3	0.95	1500	100
TBYC-180L-4	22	37	140	94.7	0.95	1500	100
TBYC-200L-4	30	50	191	95	0.95	1500	100
TBYC-225S-4	37	65	235.6	95.3	0.95	1500	100
TBYC-225M-4	45	71	286.5	95.6	0.95	1500	100
TBYC-250M-4	55	85.4	350	95.8	0.95	1500	100
TBYC-280S-4	75	117	477.5	96	0.95	1500	100
TBYC-280M-4	90	152	573	96.2	0.95	1500	100
TBYC-315S-4	110	183	700	96.4	0.95	1500	100
TBYC-315M-4	132	209	840.4	96.5	0.95	1500	100
TBYC-315L1-4	160	260	1018.6	96.5	0.95	1500	100
TBYC-315L2-4	200	352	1273.3	96.6	0.95	1500	100

電機型號	額定功率kW	額定電流	額定轉矩	效率(%)	功率因數	額定轉速	額定頻率Hz
TBYC-802-6	0.55	1	5.2	82.4	0.95	0	33.3
TBYC-90S-6	0.75	1.3	7.2	86.8	0.95	1000	33.3
TBYC-90L-6	1.1	1.9	10.5	88.2	0.95	1000	33.3
TBYC-100L-6	1.5	2.7	14.3	89.4	0.95	1000	33.3
TBYC-112M-6	2.2	3.9	21	90.5	0.95	1000	66.7
TBYC-132S-6	3	5	28.6	91.5	0.95	1000	50
TBYC-132M1-6	4	6.6	38.2	92.4	0.95	1000	50
TBYC-132M2-6	5.5	9.5	52.5	93.1	0.95	1000	50
TBYC-160M-6	7.5	12.5	71.6	93.7	0.95	1000	50
TBYC-160L-6	11	18.5	105	94.3	0.95	1000	66.7
TBYC-180L-6	15	25	143.3	94.7	0.95	1000	66.7
TBYC-200L1-6	18.5	32	176.7	95.1	0.95	1000	66.7
TBYC-200L2-6	22	36.5	210	95.4	0.95	1000	66.7
TBYC-225M-6	30	49	286.5	95.7	0.95	1000	66.7
TBYC-250M-6	37	61	353.3	95.9	0.95	1000	66.7
TBYC-280S-6	45	71	430	96	0.95	0	66.7
TBYC-280M-6	55	86	525.3	96.1	0.95	1000	66.7
TBYC-315S-6	75	123	716.3	96.2	0.95	1000	66.7
TBYC-315M-6	90	141	860	96.2	0.95	1000	66.7
TBYC-315L1-6	110	174	1050.5	96.3	0.95	1000	66.7
TBYC-315L2-6	132	210	1260.6	96.3	0.95	1000	66.7
TBYC-315L3-6	160	248	1528	96.3	0.95	1000	66.7
TBYC-315L4-6	200	320	1910	96.4	0.95	1000	66.7
TBYC-112M-8	1.5	2.8	19.1	90	0.95	750	50
TBYC-132S-8	2.2	3.8	28	90	0.95	750	37.5
TBYC-132M-8	3	5.2	38.2	91	0.95	750	37.5
TBYC-160M1-8	4	7.2	51	91.8	0.95	750	50
TBYC-160M2-8	5.5	9.9	70	92.6	0.95	750	50
TBYC-160L-8	7.5	13.4	95.5	93.2	0.95	750	50
TBYC-180L-8	11	19.5	140	93.7	0.95	750	50
TBYC-200L-8	15	26.6	191	94.2	0.95	750	50
TBYC-225S-8	18.5	32.7	235.6	94.6	0.95	750	50
TBYC-225M-8	22	38.3	280	94.9	0.95	750	50
TBYC-250M-8	30	52.7	382	95.1	0.95	750	50
TBYC-280S-8	37	65	471	95.3	0.95	750	50
TBYC-280M-8	45	75.8	573	95.6	0.95	750	50
TBYC-315S-8	55	96.2	700	95.6	0.95	750	50
TBYC-315M-8	75	122	955	95.7	0.95	750	50
TBYC-315L1-8	90	157	1146	95.7	0.95	750	50
TBYC-315L2-8	110	185.7	1400	95.7	0.95	750	50
TBYC-315L3-8	132	200	1680.8	95.8	0.95	750	50
TBYC-315L4-8	160	270	2037	95.8	0.95	750	50
